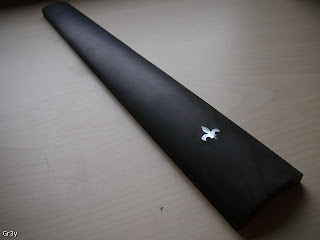

Violin Fingerboard Inlay 01

Violin Fingerboard Inlay
Price of this piece : $150
Price of inlay job: $80-$180 (depending on design)

This piece was done on a high grade ebony full size violin fingerboard with top grade mother of pearl.

Jem Jr to Jem Evo convertion

Jem Jr to Jem Evo convertion
Price: $ASK

**This is my very own Jem Jr i bought when i first started out playing electric guitar. There are quite a list of stuff changed.

-Fingerboard from Rosewood to Ebony
-Inlay full tree of life with Top Grade Mother of Pearl
-Inlay side dot markers with Top Grade Mother of Pearl
-Change of Pickup to full EVO set
-Change of bridge to Gotoh Floyd Rose style
-Change of pickguard to white pearloid
-Relic the body similar to Steve Vai's Evo.

Many often mistaken this as Jem from factory, especially after playing it. Each of the inlay are individually cut, almost any design is possible**

BeforeAfterInlay Pictures

Custom Graphic for Pedal 01

Analog Delay Custom Graphic
Price: $100-$150 (depending on graphic)

**The owner originally attempt to paint it but it ended up disastrous. He decides to let me take a look and see if i could do anything about it. We discussed on the graphic and soon it was a dream come true. It's finished in matt surface with a custom swirly pink and black graphic on the top.**

Jimi Hendrix Montery/Saville Strat

Jimi Hendrix Montery/Saville Strat
Price: $ASK

**i got this crazy idea of combining the Montery and Saville strat into one because i simply can't resist the front of the Montery and the back of the Saville. The Saville is less popular then the Montery strat but still i believe this 2 creation of Jimi matches well together in this manner. You can request for either a Montery or Saville design by itself instead of what you see here.**

Model Name Jimi Hendrix Montery/Saville Strat
Colors Hand Painted Graphics
Body Solid Alder
Neck Maple, “U” Shape,
Fingerboard Rosewood
No. of Frets 21 Medium Frets
Pickups Stock Ceremic
Position 1. Bridge Pickup
Position 2. Bridge Pickup and Middle Pickup
Position 3. Middle Pickup
Position 4. Middle Pickup and Neck Pickup
Position 5. Neck Pickup
Bridge Graphtech String Saver
Machine Heads Gotoh Die Cast
Hardware Chrome
Pickguard Hand Painted Graphics
Scale Length 25.5” (648 mm)
Width at Nut 1.6875” (43 mm)
String Gauges:Every B-52 (.010 .013 .017 .026 .036 .046)

Earlier Stages

JM Black Strat (part 2)

Pictures of the completed guitar. Enjoy :)

Custom 10-way Strat

Gr3y Custom 10-way Strat
Price: $ASK

Model Name Gr3y Custom 10-way Strat
Colors White
Body Solid Alder
Neck Maple, "SRV" profile but thinner than actual Fender SRV.
Fingerboard Maple
No. of Frets 21 Medium Frets
Pickups GFS Strat "TEXAS" Alnico Stagger Pickup
Toggle 1
Position 1. Bridge Pickup
Position 2. Bridge Pickup and Middle Pickup
Position 3. Middle Pickup
Position 4. Middle Pickup and Neck Pickup
Position 5. Neck Pickup
Toggle 2
Position 1. Bridge Pickup and Middle Pickup in phase
Position 2. Bridge Pickup and Middle Pickup out of phase
Position 3. Bridge Pickup and Neck Pickup
Position 4. Middle Pickup and Neck Pickup out of phase
Position 5. Middle Pickup and Neck Pickup in phase
Bridge Graphtech String Savers
Machine Heads Wilkinson Locking
Hardware Chrome
Pickguard Tortoise Shell
Scale Length 25.5” (648 mm)
Width at Nut 1.6875” (43 mm)
String Gauges:Every B-52 (.010 .013 .017 .026 .036 .046)

Purple Haze LP

Gr3y Purple Haze LP
Price: $ASK

Model Name Purple Haze
Colors Metallic Purple with Black Burst
Body Solid Alder
Neck Maple, “U” Shape,
Fingerboard Rosewood
No. of Frets 22 Medium Frets
Pickups Tonerider Rocksong
Position 1. Bridge Pickup
Position 2. Bridge Pickup and Neck Pickup
Position 3. Neck Pickup
Bridge Gotoh Tune-O-Matic
Machine Heads Gotoh® Deluxe Cast/Sealed Tuning Machines
Hardware Chrome
Scale Length 24.75” (648 mm)
Width at Nut 1.6875” (43 mm)
String Gauges: Every B-52 (.010 .013 .017 .026 .036 .046)

JM Black Strat (part 1)

JM Black Strat
Price: $ASK

Model Name JM Black Strat
Colors Relic Black
Body Solid Alder
Neck Maple, “U” Shape,
Fingerboard Rosewood
No. of Frets 21 Medium Frets
Pickups Fender Texas Special
Position 1. Bridge Pickup
Position 2. Bridge Pickup and Neck Pickup
Position 3. Neck Pickup
Bridge Fender Bent Steel
Machine Heads Shaller Locking
Hardware Gold
Pickguard Relic White
Scale Length 25.5” (648 mm)
Width at Nut 1.6875” (43 mm)
String Gauges:Every B-52 (.010 .013 .017 .026 .036 .046)

Earlier stages

After aging the plastic parts

Pinstripe Tele

Gr3y Pinstripe Tele
SGD $750

Model Name Pinstripe Telecaster
Colors Black with Red and White Pinstripe
Body Solid Alder
Neck Maple, “U” Shape,
Fingerboard Rosewood
No. of Frets 22 Medium Frets
Pickups High output Ceremic Magnet
Position 1. Bridge Pickup
Position 2. Bridge Pickup and Neck Pickup
Position 3. Neck Pickup
Bridge Standard Tele with 6 Graphtech String Saver Saddles
Machine Heads Gotoh® Deluxe Cast/Sealed Tuning Machines
Hardware Chrome
Pickguard Transparent
Scale Length 25.5” (648 mm)
Width at Nut 1.6875” (43 mm)
String Gauges: (.009, .011, .016, .024, .032, .042),
